Amiga Elite Loading Screen Trophy

Posted: Aug 26, 2015

For today's piece, we will be creating, in glorious 3D printed plastic, part of the classic game Elite loading screen from the Amiga version of the game.

For those not familiar with the screenshot, here it is:

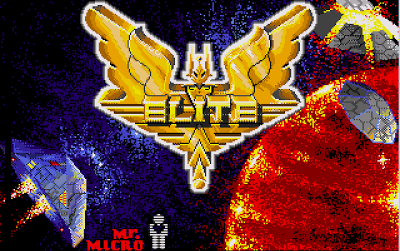

Elite loading screen on the Amiga

What I want to do is recreate the standout, central element and mount it on a stand ready to go with my other trophies (Horace, Manic Miner, etc.). Previously, I've created 3D models based on retro game graphics by re-creating the image in 3D at the pixel level.

This worked great for Miner Willy and Horace, but for this, I want to eliminate the "pixel look" and go for smooth curves instead. So what I need to do is somehow get the elite loading screen image into 123D Design and then sketch around it using the Spline tool.

Unfortunately, there is no way to directly sketch a 3D model from an image in 123D Design, so I will instead use our Image to 3D mesh tool to create a basic 3D model of the image. I will then import that 3D model into 123D Design and sketch around it instead.

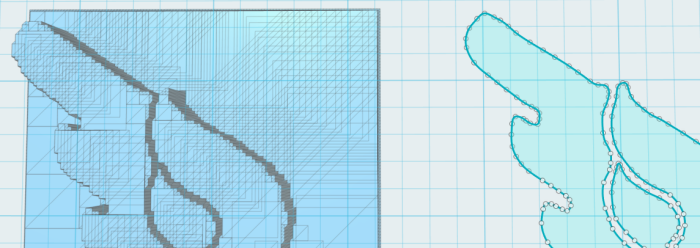

Elite loading screen imported as a basic 3D model ready for sketching

So, as you can see, on the left is the basic 3D model we imported, and the sketch I have done using the Spline tool is on the right. With the sketch done, we no longer need the rough model on the left, so we can delete that.

Once you have a flat 2D sketch, it is time to use the Extrude function to create a 3D model from it. For this, I extrude the sketch and create a model 20mm deep. This will give me some scope to add some subtle depth alterations later on.

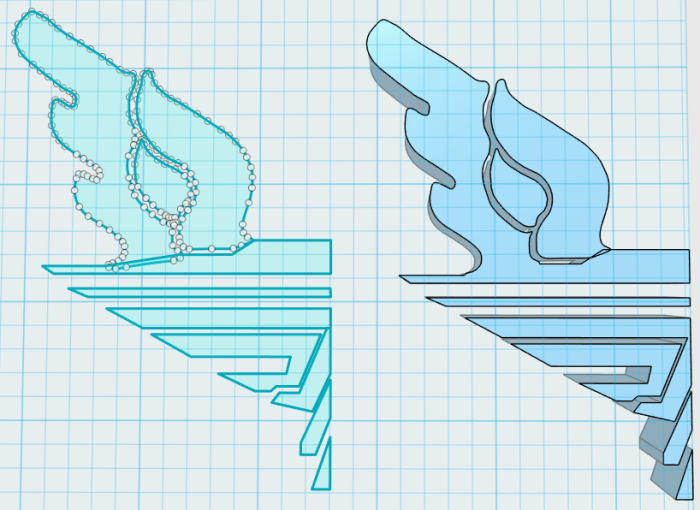

Elite loading screen sketched and extruded
Elite loading screen extruded to 20mm

By now, you may have noticed I've only sketched and extruded half of the image! That's perfectly okay. As it is symmetrical anyway, I only have to do the left side and then use the Mirror command, which will then fill in the right side. It saves a load of work!

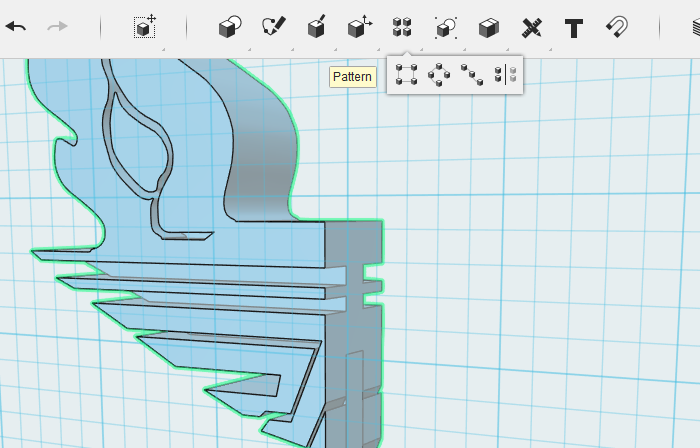

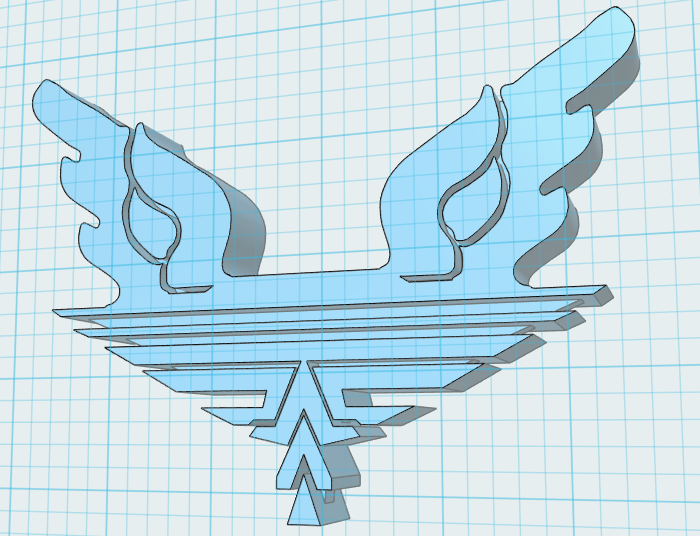

Elite loading screen mirrored

With the main part done, all that is left is to create the ELITE text and some other small pieces. When we come to print it, we will print, starting at the bottom, using gold plastic for the main section and then switching over to silver for the text.

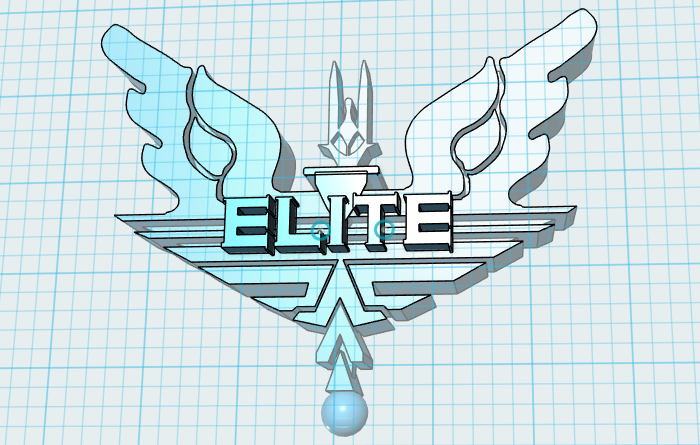

Elite loading screen final design

The design of the stand is very basic, as the focus should be the central Elite part we've created!

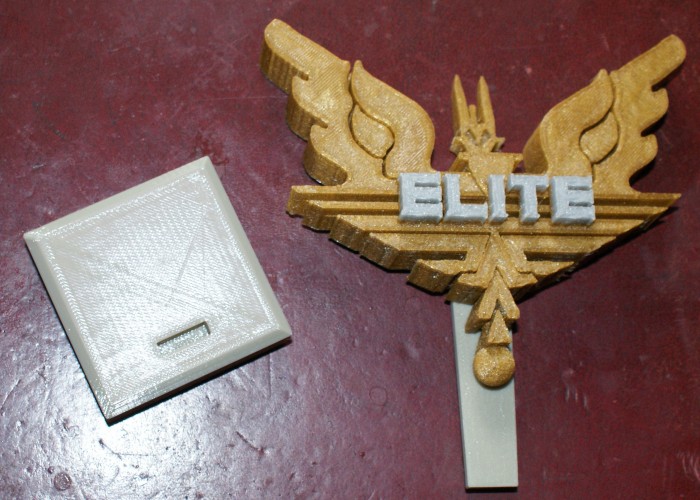

Elite loading screen final print, not assembled

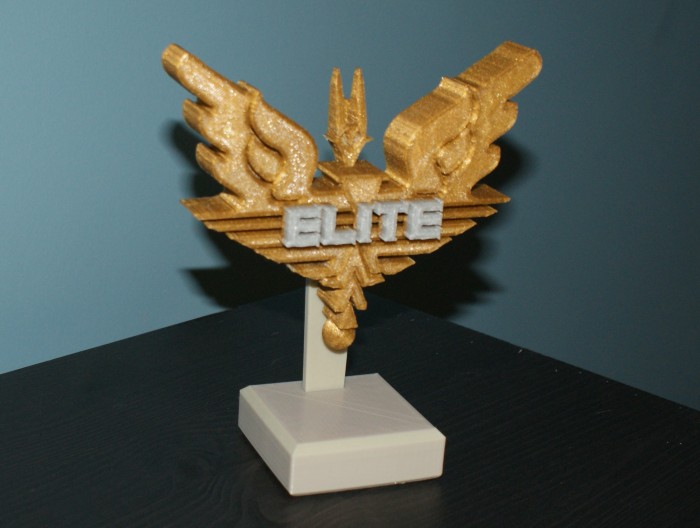

Elite loading screen final assembled print

This will look great in the collection with the other trophies. I hope this has given you some inspiration to go and get started using a 3D printer!

File Download

Click the link below to download the file(s):

Elite Trophy Model: elite.zip (1.78mb)

We provide all files as-is, without any kind of warranty, for use in your own personal projects. They may not be redistributed or sold without permission.
